Fly IV Specs

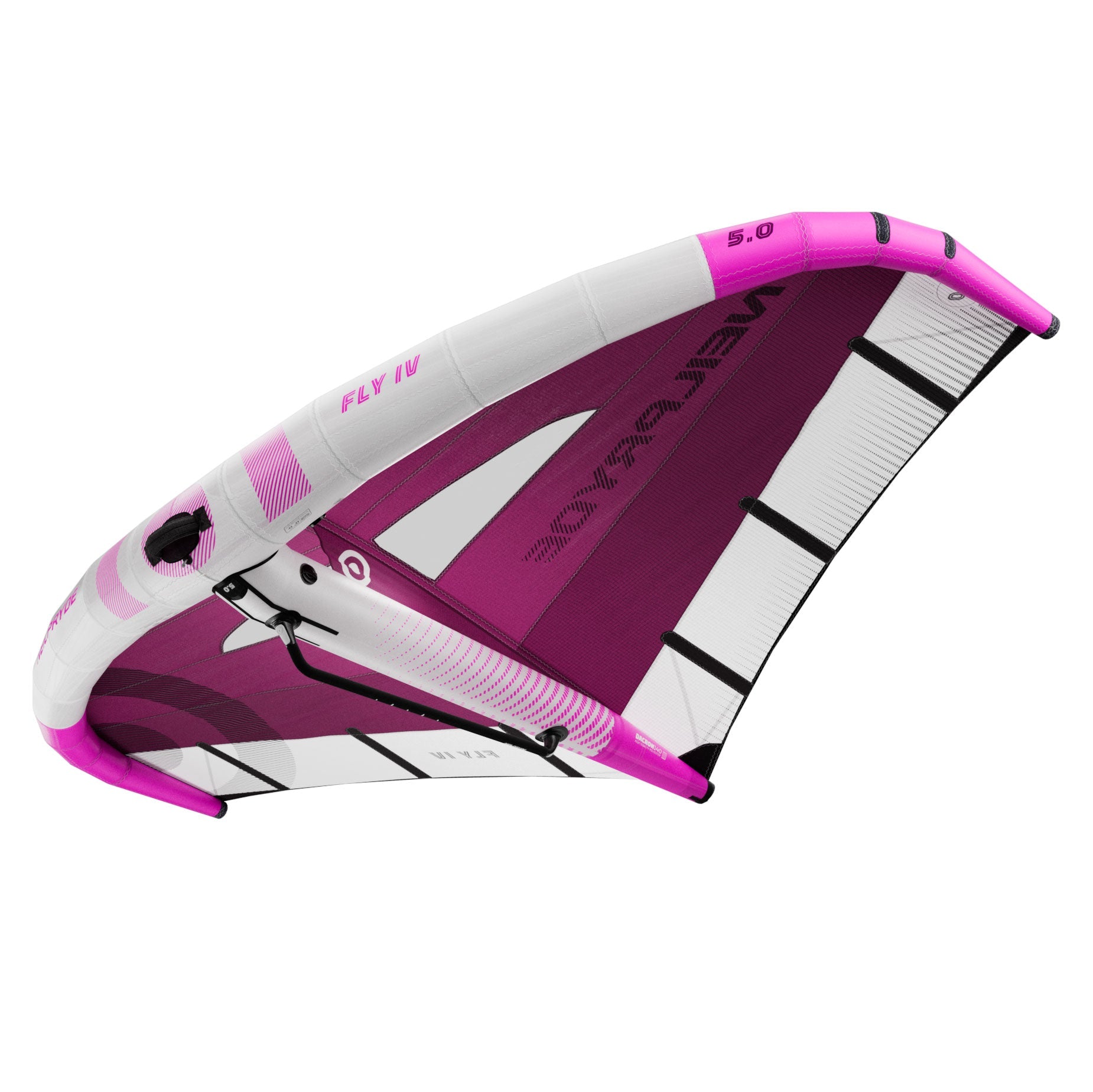

NeilPryde Fly IV – Specs
Performance-freeride wing. Figures are factory specifications.
| Size | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 |
|---|---|---|---|---|---|---|---|
| LE Pressure (PSI) | 8.5 | 8.5 | 8 | 8 | 7.5 | 7.5 | 7 |
| Strut Pressure (PSI) | 9 | 9 | 8.5 | 8.5 | 8 | 8 | 7.5 |
| Wing Span (mm) | 2817 | 2983 | 3135 | 3273 | 3387 | 3506 | 3610 |
| Strut (mm) | 1660 | 1780 | 1900 | 2018 | 2130 | 2230 | 2340 |
| Aspect Ratio | 2.51 | 2.46 | 2.42 | 2.37 | 2.31 | 2.27 | 2.22 |
| Weight (kg) | 2.2 | 2.4 | 2.55 | 2.65 | 2.85 | 2.95 | 3.15 |
| Leash Length (mm) | 1000 | 1000 | 1200 | 1200 | 1200 | 1400 | 1400 |
| Handle | 930 Mono | 990 Mono | 990 Mono | 990 Mono | 1070 Mono | 1070 Mono | 1070 Mono |
| Bag | Tubular S | Tubular M | Tubular M | Tubular M | Tubular M | Tubular L | Tubular L |
WHAT'S NEW
KEY FEATURES & MATERIALS

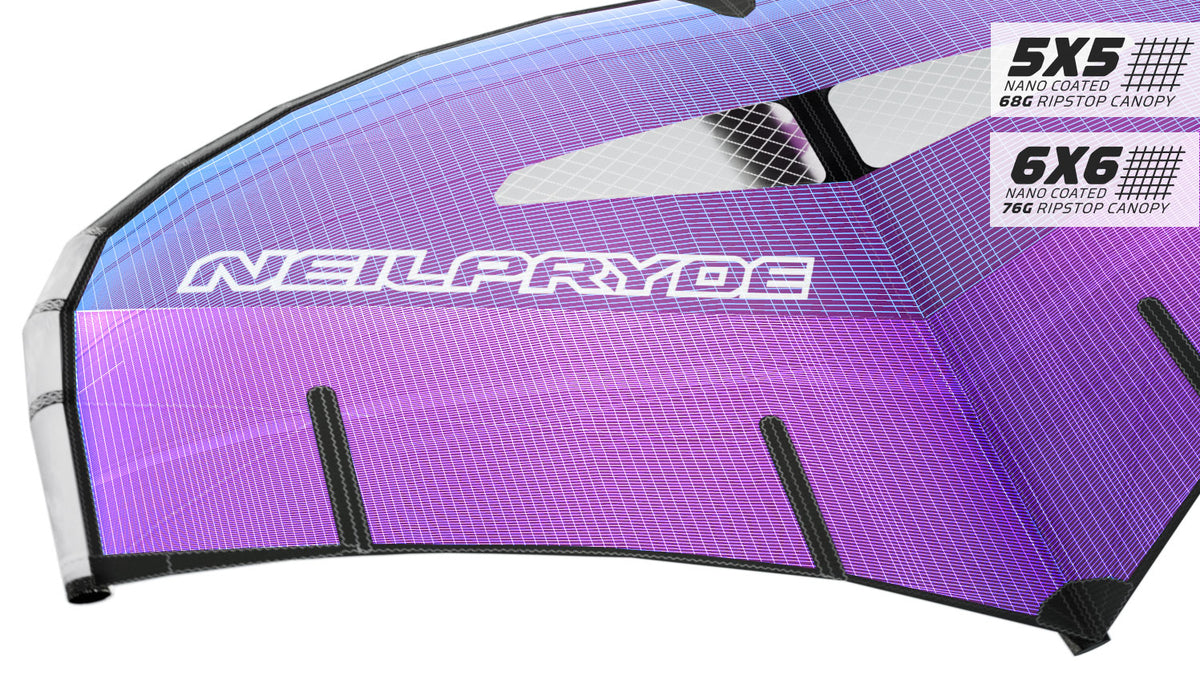

GRADUATED RIPSTOP
Ripstop 5x5 in the front and 6x6 in the back for the optimum balance of strength to weight. Transverse paneling holds shape under load and reduces stretch over time.

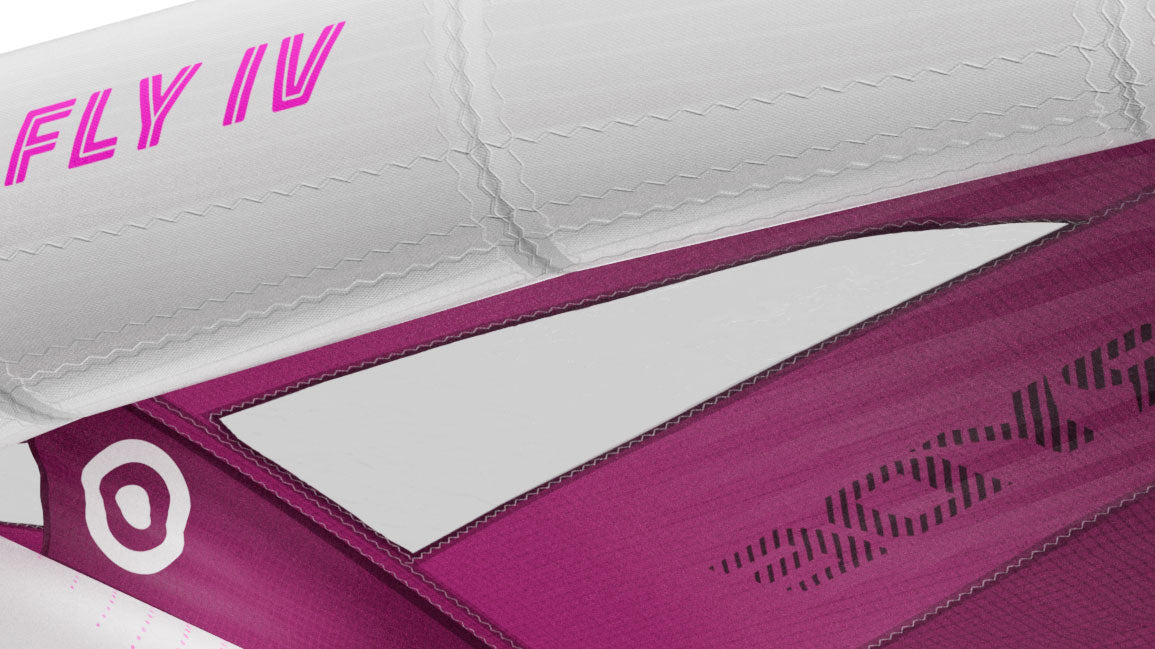

PVC WINDOWS
Carefully integrated into the panel layout, the PVC panels deliver unmatched visibility and durability, letting you stay aware of your surroundings while pushing your limits on the water.
HIGH TENSION CANOPY
The 3D shape of the canopy leading edge is defined by a series of transverse panels that converge at the wingtips, maximizing tension in the critical entry sections for more lift and a higher stall angle in light winds, plus efficient, high-top-speed flight at low angles of attack in strong winds.

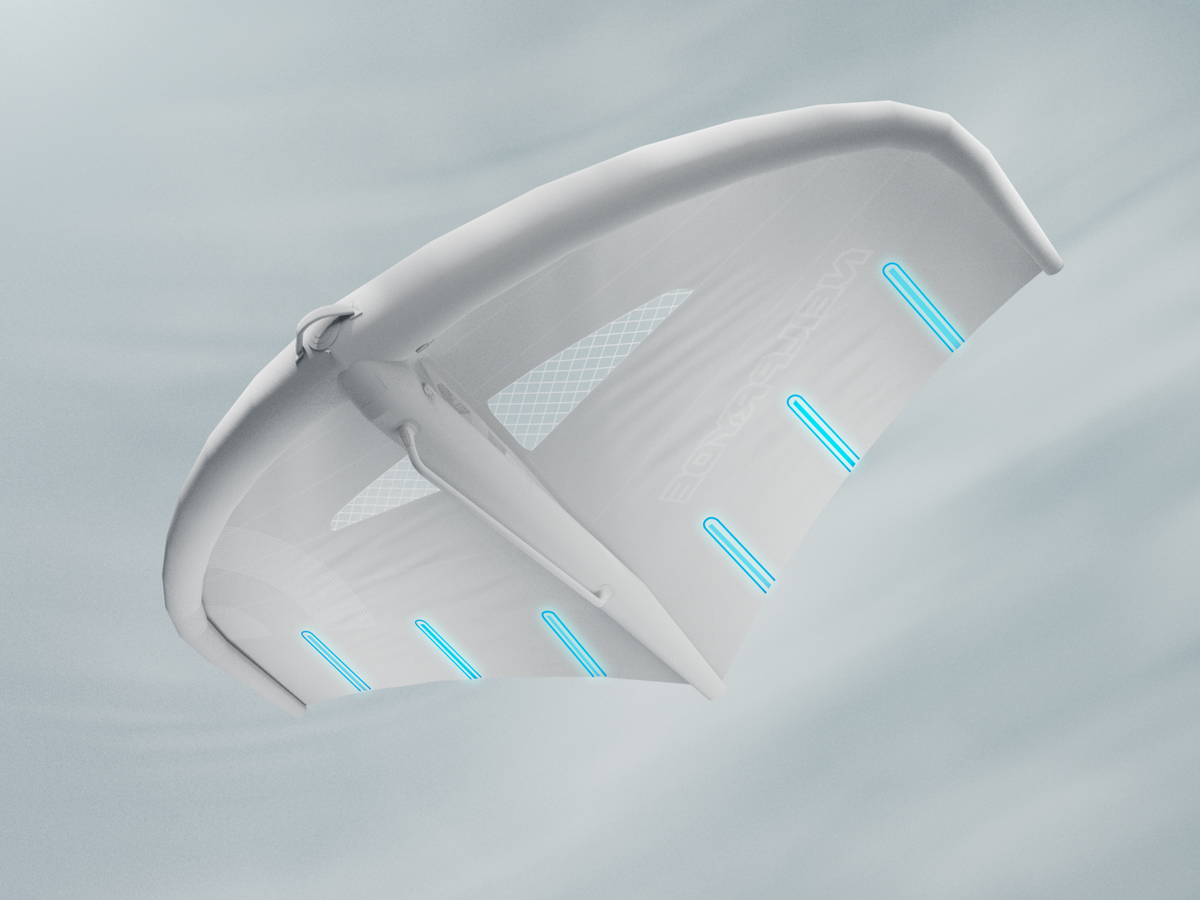

NP HIGH LIFT CONCEPT
Highly refined LE geometry and entry shaping mean each wing produces maximum thrust for its size, dramatically increasing the usable range so riders can fly a smaller wing than typical in a given set of conditions, for easier handling and greater maneuverability.
FLY IV VS FIREFLY
The FireFly is our true all-round, performance wing, suited for everything from wave riding to downwind bump chasing to upwind/downwind racing, with a slightly lower aspect ratio and shorter wingspan for the most neutral feel on the wave. The Fly IV is our performance freeride wing, which can also very happily double as a freestyle wing for those looking for a little more straight-line performance all round, especially upwind.
